LIFETIME WARRANTY.

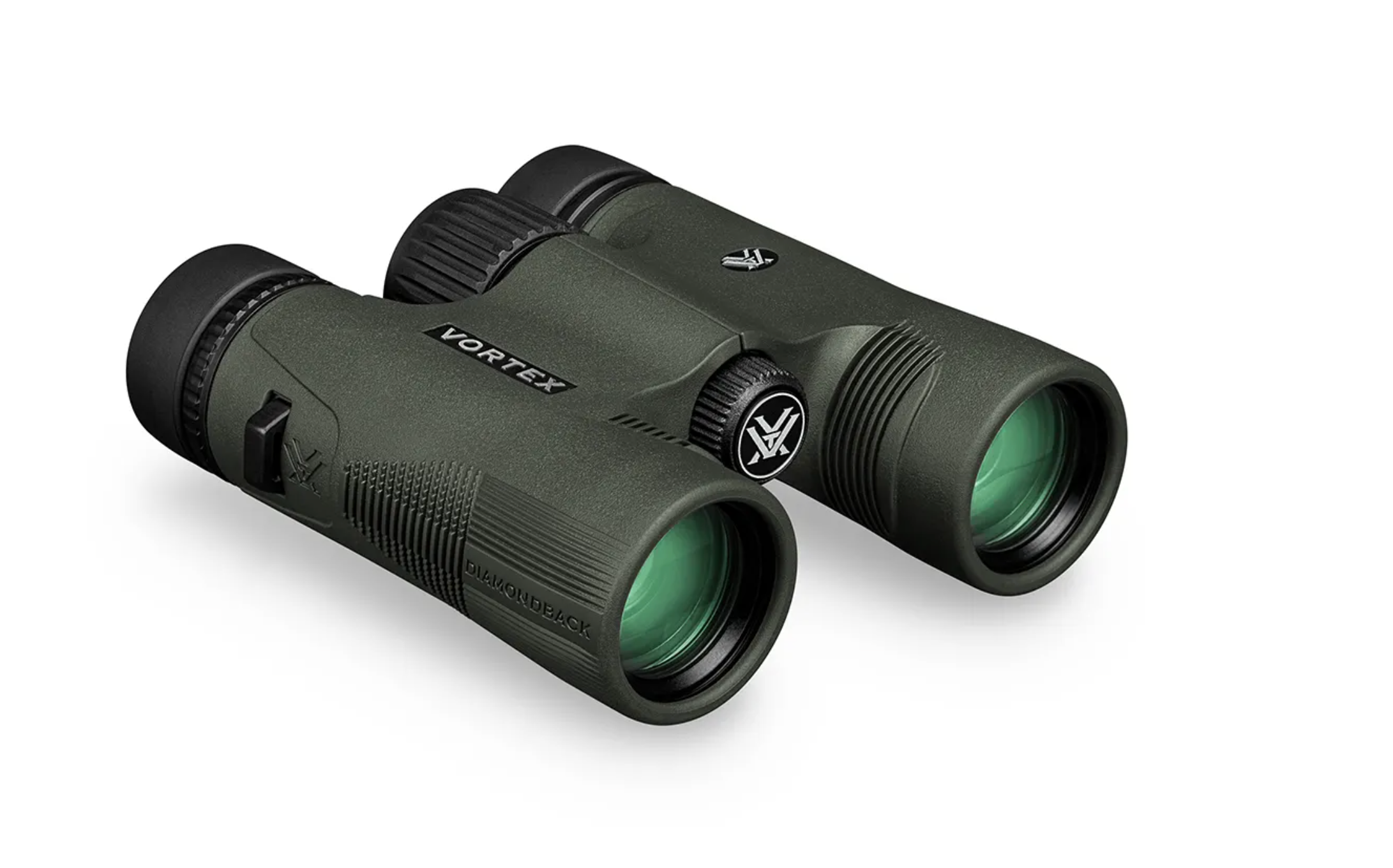

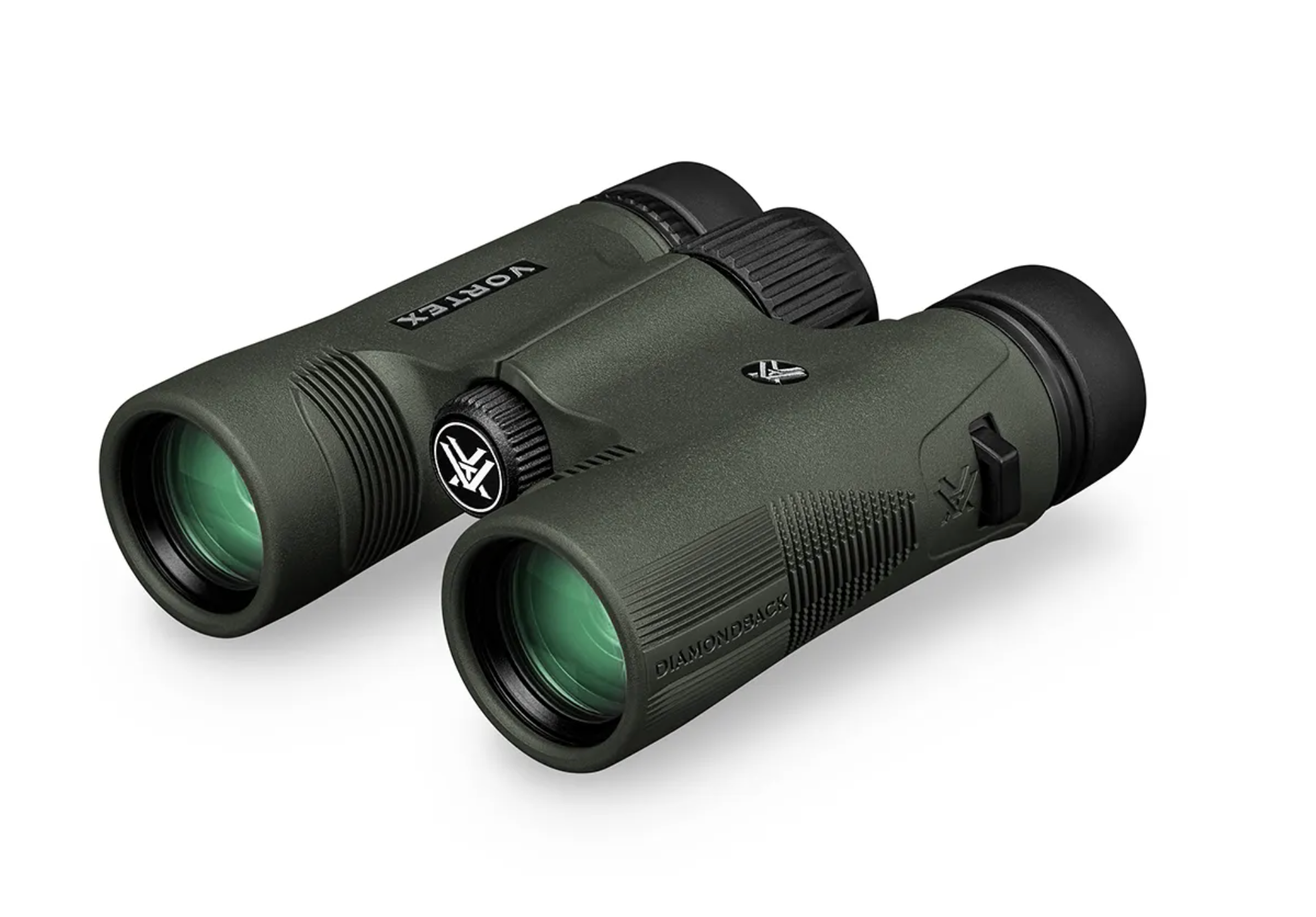

Made for hunters who demand hard-working, reliable optics, the Diamondback® HD delivers sharp resolution, enhanced contrast, and rugged durability. Lightweight yet tough enough to go the distance, it’s a strong lineup designed to handle any kind of hunt. A true workhorse, Diamondback® HD gives you the clarity, utility, and trust you need to consistently punch more tags.
Magnification | 10x |
---|---|
Objective Lens Diameter | 28 mm |
Eye Relief | 16.0mm |
Angular Field of View | 5.1º |
Close Focus | 6.0' |
Interpupillary Distance | 57mm - 73mm |
Linear Field of View | 273' @ 1000 yds |
Height | 4.6" |
Width | 4.5" |
Weight |
13.3 oz. |
HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
---|---|
Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
Dielectric Prism Coatings | Multi-layer prism coatings provide bright, clear, color-accurate images. |
Phase Correction | Coating on roof prism enhances resolution and contrast. |
ArmorTek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
Rubber Armor | Provides a secure, non-slip grip, and durable external protection. |
Argon Gas Purged | Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions. |
Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments. |
Fogproof | Designed to withstand a wide range of temperatures. |
Shockproof | Rugged construction withstands recoil and impact. |
Tripod Adaptable | Allowing use on a tripod or car window mount. Tripod adapter may be required. |
Included in the Box
- Soft side carry case
- Soft side carry case strap
- Comfort neck strap
- Tethered objective lens covers
- Rainguard Eyepiece Cover
- Lens Cloth
Choose options




Diamondback® HD 10x28
Sale price$159.99 USD
